Understanding For Loops

A for loop flowchart allows programmers to run a specific line of code multiple times with a control statement and a body of instructions. It’s used when the programmer knows in advance how many times the codes must be executed to meet the conditions.

For example, if you run an offer where you give away gift cards to the first 50 users who sign up for your website, the for loop repeats exactly 50 times.

With for loop, you can:

  • Run the same task for a fixed number of times
  • Iterate list, dictionary, and other collections of items one at a time
  • Avoid code repetition for clean and compact lines

The difference between for loop and while loop

A while loop flowchart helps you run repetitive processes, like a for loop flowchart. However, it differs in its approach to controlling flow statements.

If you don’t know how many times codes need to run but know specific conditions that must be met for codes to keep running, you can use a while loop for efficiency.

Let’s take the giveaway example.

This time, you want to send $20 gift cards to early adopters but don’t know how many would sign up and when. You’ve set aside $500 worth of gift cards for this campaign.

With a while loop, you can run codes that send $20 gift cards until the budget is exhausted. You don’t know for sure how many times it will run, but the condition is that it can’t exceed the $500 budget.

Here are the key differences between the for loop and the while loop:

For loopWhile loop
Programmers know how many times codes need to be executed Programmers know what conditions must be met for the loop to continue but not necessarily how many times it’ll run
Usually runs through explicit collections like strings and dictionary The loop continues as long as the condition is “true”
For loop ends when the predefined number of iterations is reached and doesn’t trigger an infinite loopThe while loop continues to run indefinitely unless the condition becomes “false”
Ideal for straightforward and repetitive tasksIdeal for complex and dynamic conditions

Components of a for loop flowchart

Despite the relative simplicity of for loops, it’s important to know the components that make the flowchart.

  • Initialization: This is the loop control variable that runs only once at the beginning
  • Condition: It’s tested to verify if it’s true or false. In the giveaway example, the condition is whether 50 people have been given the gift cards
  • Decision point: It’s when the condition verification decides the next step. If it’s “true,” it continues to execute
  • Loop body: The loop body is used to run all the statements
  • Update: The loop continues to be updated based on the decision point
  • Increment/Decrement: The update is either incremental or decremental. For the giveaway example, the number of customers who receive gift cards continues to increase until it hits 50
Summarize this article with AI ClickUp Brain not only saves you precious time by instantly summarizing articles, it also leverages AI to connect your tasks, docs, people, and more, streamlining your workflow like never before.
ClickUp Brain
Avatar of person using AI Summarize this article for me please

How to Create a For Loop in Flowchart

We’re going to show you how to create a for loop flowchart in Microsoft Excel. First, open a new Excel sheet and give it a name.

Step 1. Initialize loop control variable

  • Click on Insert > Shapes to open shapes collections and scroll down to find basic flowchart shapes
  • Click on the oval shape (Flow chart: Terminator) to add to Excel
  • Click on Shape > Fill to paint it yellow
  • Double-click the shape to add labels for the initialization step. For example, ‘Start sending gift cards’
Customize and Label the shape in MS Excel

Step 2. Condition check

  • Insert a diamond shape for the condition, fill green color, and label it appropriately by following the process above. The condition in this case would be: Gift cards <50?’
  • Go to Insert > Shapes and pick the arrow from the Lines collection to connect two shapes
Condition Check shape in MS Excel

Step 3. True path

  1. Draw an arrow from the condition to a rectangle (Flow chart: Process) for the loop body if the condition is true
  2. Fill the rectangle using blue color
  3. Click Insert > Text Box to add a text box beside the arrow
  4. Double-click the text box to write True
Add True Path in Excel

Step 4. Loop body

Label the rectangle with the actions to be repeated. For instance, ‘Send another gift card’

Loop Body in Excel

Step 5. Update step

  1. Add another rectangle to update the loop control variable. Example: ‘Increase the number of shared gift cards by 1’
  2. Connect the loop body, update, and condition with an arrow and elbow arrow connector
Update step in Excel

Step 6. False path

  1. Insert a rectangle to signify the end of the loop
  2. Fill it with white color
  3. Draw a line from the condition to the endpoint if the condition is false
  4. Add a text box beside the arrow to write “False’
 False Path in Excel

Based on these steps, the for loop flowchart should look like this:

For Loop Flowchart in Excel

While you can use tools like Excel to create flowchart loops, it doesn’t offer extensive lists of pre-made structures or scalable features that can be used regularly and without friction. One of the best ways to bring these ideas to life is by using flowchart templates built specifically for custom use cases.

Using ClickUp to create flowcharts

As a business workflow software, ClickUp features carefully designed flowchart creation tools such as ClickUp Whiteboards and ClickUp Mind Maps to help you complete projects. It excels (pun intended) at keeping things simple, visually appealing, and connected to your workflows.

ClickUp Whiteboards is the visual playground for collaborators and creatives. Team members can freely add ideas or concepts to overall strategies, which helps build accountability.

Users can choose from one of many process workflow templates or start from scratch. The whiteboard’s left menu bar houses all the tools to help you customize your board. Add shapes, colors, and text to mark different elements in your flowchart, and use the connectors to build relationships—all within a drag-and-drop space.

ClickUp Whiteboard
Seamlessly connect ideas, tasks, and project elements in ClickUp Whiteboards

But looking pretty is not the only good thing about ClickUp Whiteboards. It goes beyond traditional tools by offering scalability and real-time collaboration.

For example, you can brainstorm and strategize with colleagues by adding ClickUp Docs and ClickUp Tasks to the mix. You can even embed ClickUp Items such as people and lists to enrich your flowcharts with more data points.

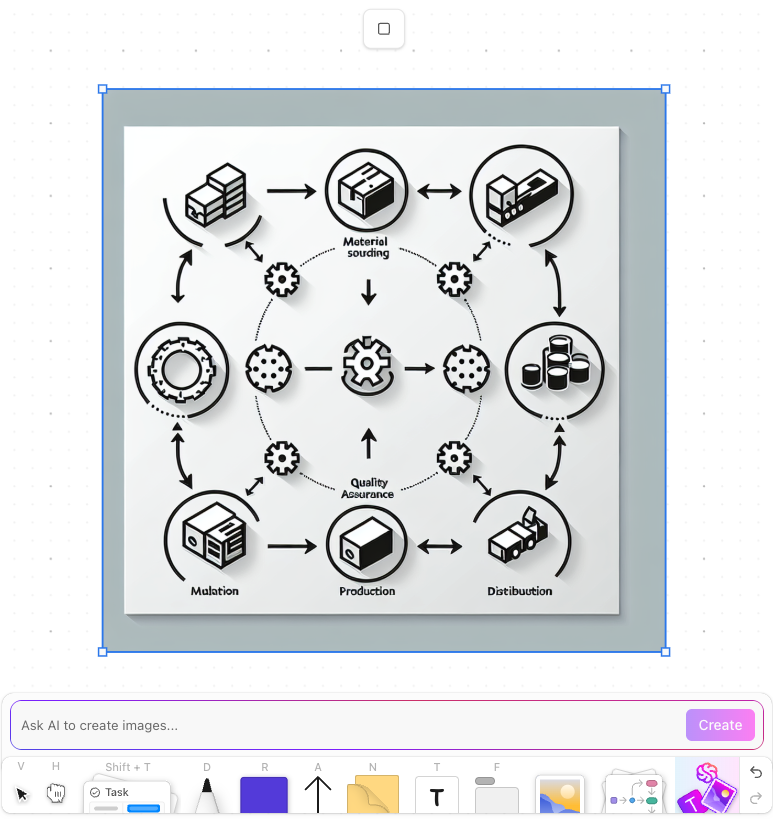

This also extends to content from outside of ClickUp. Be it a Figma design, a Google spreadsheet, a YouTube video, or a website link, you can add various types of content that make your projects detailed and authentic.

On top of that, you can use pre-made layouts such as process map templates to create visual clones of complex SOPs and reduce errors.

Steps to create a for loop flowchart in ClickUp Whiteboards

By using the tools discussed above, you can draw a for loop flowchart quickly within ClickUp.

In your Workspace, expand the left sidebar by clicking More and then select Whiteboards. Name the whiteboard and select a template that suits your needs. To illustrate this flowchart, we selected the Start from Scratch button.

Step 1. Initialize loop control variable

  • Click the shape icon from the left menu bar and select the circle
  • Draw an oval by modifying the circle
  • Click the Fill Color icon over the shape to paint it yellow
  • Click the T icon next to it to label the oval with the initialization step. For example, ‘Start sending gift cards’
First shape on ClickUp Whiteboard
Create the first shape on ClickUp Whiteboards

Step 2. Condition check

  • Draw a diamond shape for the condition, fill in the green color, and label it. The condition is ‘Gift cards <50?’
  • Select the Connectors icon from the left menu bar and connect the two shapes
Condition check on the ClickUp Whiteboard
Do the condition check with the second shape on the ClickUp Whiteboard

Step 3. True path

  1. Draw a line from the condition to a rectangle for the loop body if the condition is true
  2. Fill the rectangle with blue
  3. Click the T icon over the line to write ‘True’
True path on the whiteboard in ClickUp
Draw the true path on the whiteboard in ClickUp by connecting the condition and loop body

Step 4. Loop body

Label the rectangle with the actions to be repeated. In this case, it’d be ‘Send another gift card’

Loop Body in ClickUp Whiteboard
Define loop body by using the text tools in ClickUp Whiteboards

Step 5. Update step

  1. Draw another rectangle to update the loop control variable. Example: ‘Increase the number of shared gift cards by 1′
  2. Connect the loop body, update, and condition with connectors
Update step on ClickUp Whiteboard
Update the variables and use L-shaped arrows to connect them

Step 6. False path

  1. Add a rectangle to signify the end of the loop
  2. Fill it with white color
  3. Draw a line from the condition to the endpoint if the condition is false
  4. Click the T icon over the line to write ‘False’
False path on ClickUp Whiteboard
Add an endpoint to illustrate loop closure

Based on these steps, the flowchart should look like this in ClickUp:

For loop flowchart with ClickUp Whiteboard
Create visually appealing flowcharts in ClickUp Whiteboards in minutes

While ClickUp Whiteboards is the ideal way to draw diagrams and flowcharts, you can pair it with ClickUp Mind Maps for granular understanding. Mind Maps are easy-to-create idea chains where each idea is represented through nodes. These nodes branch off in different directions, helping users manage time and productivity.

The ClickUp Project Mapping Flowchart Template is one of the easiest ways to create and modify mind maps based on project complexities.

With this template, you can add tasks with mind map nodes, get a holistic understanding of every component of the project, and stay on track.

Visualize how the tasks in your workflow are connected to each other with ClickUp’s Project Mapping Template

Here’s how you can use the template to visualize your project:

  • Use ClickUp Tasks to add steps and responsibilities required to finish the project
  • Add custom statuses and update them on every step to maintain clarity
  • Switch between Ideas, Getting Started Guide, and Project Plan Mind Map views to help teammates understand tasks and roles

When you have so many layers of steps and stakeholders, bringing them all together on a dashboard helps companies mitigate data inaccuracies and time wastage.

By using ClickUp Whiteboards and ClickUp Mind Maps in tandem, assignees can understand how they’re connected to the larger project, enabling them to work cross-functionally.

Summarize this article with AI ClickUp Brain not only saves you precious time by instantly summarizing articles, it also leverages AI to connect your tasks, docs, people, and more, streamlining your workflow like never before.
ClickUp Brain
Avatar of person using AI Summarize this article for me please

Example For Loop Flowchart

Flowchart loops in Python work with collection-based iterations. For example, numbers, strings, and dictionaries are easy for loop execution.

Example in Python

This structure below clearly shows the loop process: initialization, checking the condition, printing the value, updating, and repeating until the condition is no longer satisfied.

Code Example:  for i in range(0, 10): print(i)

For loop's Initial step in python

Flowchart Representation:

Start

Initialize i = 0

Condition i < 10

True Path: print(i)

Increment i = i + 1

Repeat Step 3

False Path: End

Based on the loop flowchart outline, it’d look like this in Python:

For Loop in python
